Sub-THz & Terahertz Waveguide Components Manufacturer – Precision Engineered for the Future of Wireless
Our waveguide components serve the most demanding sectors:
5G Infrastructure: E-band and V-band components for backhaul networks
6G Research: Sub-THz and THz components for next-generation communication prototypes
Aerospace & Satellite: Lightweight, reliable components for space-borne systems
Defense & Radar: High-power, durable components for military applications
Test & Measurement: Precision components for laboratory-grade instrumentatio.
Every component is inspected using CMM technology and verified for dimensional accuracy. For critical RF applications, we provide VNA testing with S-parameter validation, ensuring each part performs to specification.
As the wireless industry pushes beyond millimeter-wave into the sub-terahertz and terahertz frontiers, the demand for precision waveguide components has never been more critical—or more technically demanding. We are a specialized manufacturer of sub-THz and terahertz waveguide components and assemblies, delivering precision-machined solutions that enable the next generation of communication, sensing, imaging, and scientific discovery.
Frequencies between 100 GHz and 10 THz represent the last largely unexplored frontier of the electromagnetic spectrum. At these wavelengths—measured in fractions of a millimeter—the rules of conventional RF engineering change fundamentally. Signal behavior becomes extraordinarily sensitive to dimensional accuracy. A deviation of mere microns can cause unacceptable insertion loss, phase distortion, or signal reflection. Mechanical precision is no longer a manufacturing detail; it is the very foundation of electrical performance.
Sub-THz & THz Waveguide Flanges – Precision Specifications
| Parameter | Standard Precision | High Precision | Inspection Method | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Flange Face Flatness | ≤ 0.02 mm | ≤ 0.005 mm | Dial Gauge | ||||||
| Flange Face Surface Roughness (Ra) | ≤ 0.8 μm | ≤ 0.2 μm | Profilometer | ||||||
| Mounting Hole Position Tolerance | ± 0.05 mm | ± 0.015 mm | CMM | ||||||
| Mounting Hole Diameter Tolerance (H7) | +0.015 / 0 mm | +0.008 / 0 mm | Air Gauge | ||||||
| Waveguide Aperture Dimension Tolerance | ± 0.025 mm | ± 0.010 mm | CMM | ||||||
| Flange Thickness Tolerance | ± 0.05 mm | ± 0.02 mm | Micrometer | ||||||
| Mating Face Perpendicularity | ≤ 0.03 mm | ≤ 0.010 mm | CMM | ||||||
| Choke Groove Depth Tolerance | ± 0.02 mm | ± 0.008 mm | Depth Micrometer | ||||||
| Choke Groove Width Tolerance | ± 0.015 mm | ± 0.005 mm | CMM | ||||||
| Surface Coating Thickness | ± 5 μm | ± 2 μm | X-Ray Fluorescence (XRF) | ||||||
Our manufacturing facility is purpose-built for the extreme demands of sub-THz and THz applications. Equipped with ultra-precision 5-axis machining centers and specialized EDM equipment, we achieve tolerances as tight as 1 micron (0.001mm) and surface finishes as smooth as Ra < 0.2μm. Every component we produce undergoes rigorous inspection using CMM technology and, for critical RF applications, Vector Network Analyzer (VNA) testing with S-parameter validation. We deliver more than machined parts—we deliver proven electrical performance.
Sub-THz & THz Waveguide Flanges – Types and Corresponding Standards
| Flange Type | Applicable Standard | Typical Frequency Band | Feature | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Square Flange | MIL-DTL-3922 / IEC 60154 | All bands | Standard interface, widely used | ||||||
| Round Flange | MIL-DTL-3922 / IEC 60154 | All bands | Rotationally symmetric, easier alignment | ||||||
| Flat Flange | Custom / Manufacturer Spec | Lower frequency bands | Simplified sealing, no choke groove | ||||||
| Choke Flange | MIL-DTL-3922 / IEC 60154 | All bands | Built-in choke groove reduces RF leakage without gasket | ||||||

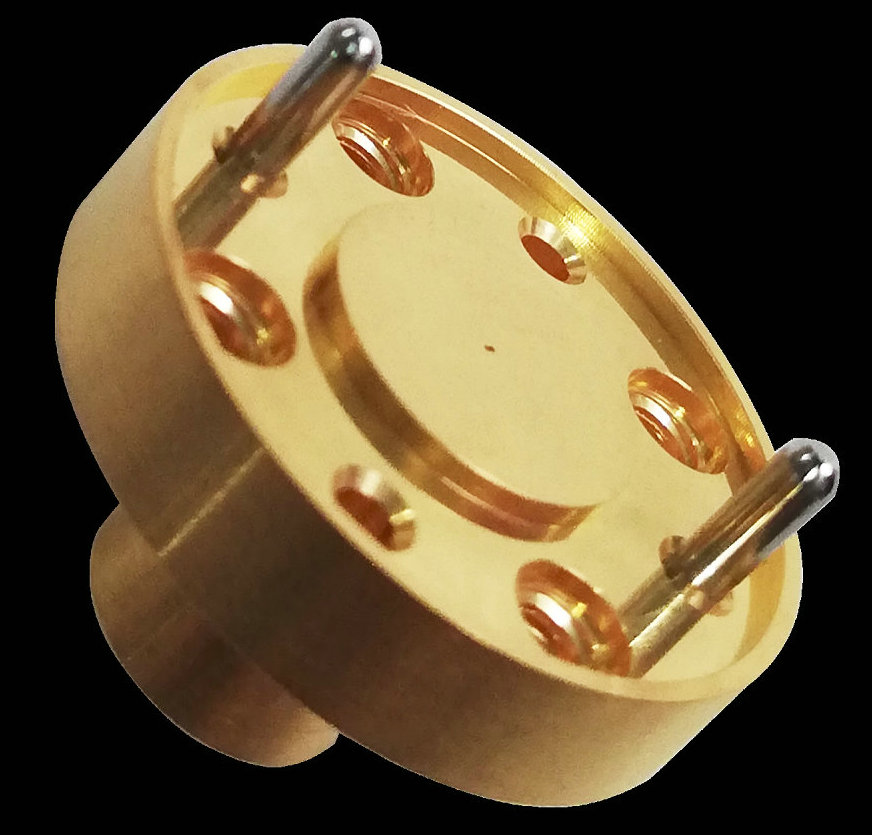

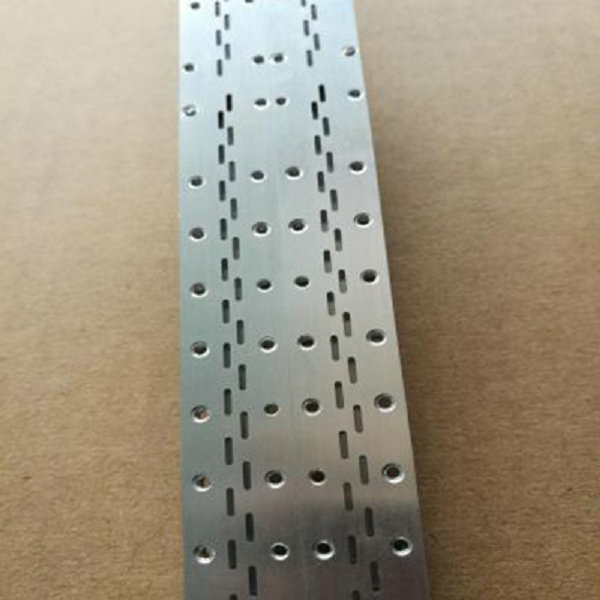

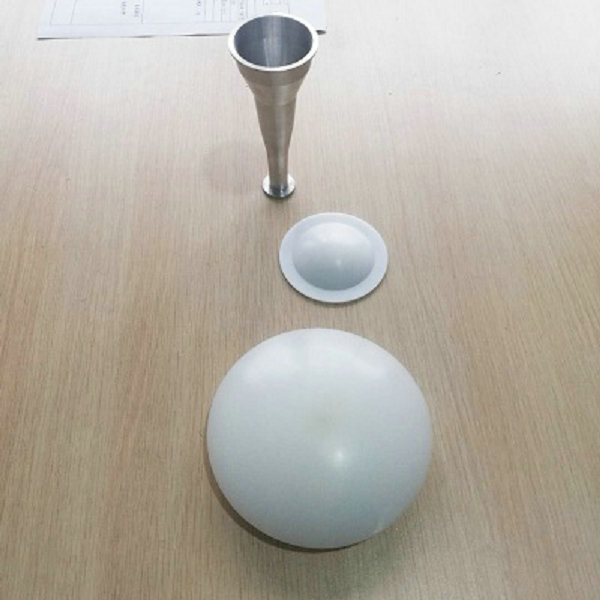

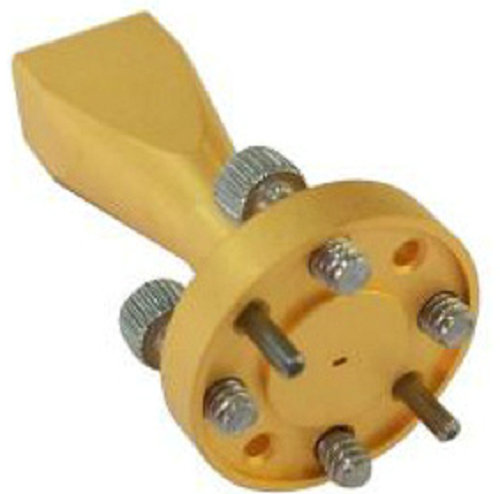

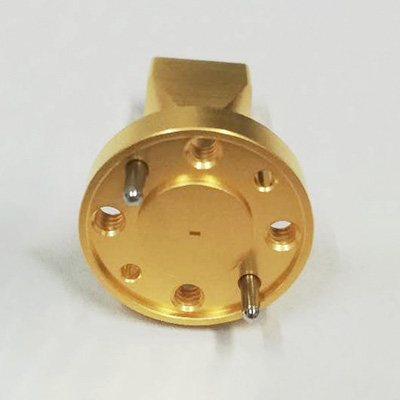

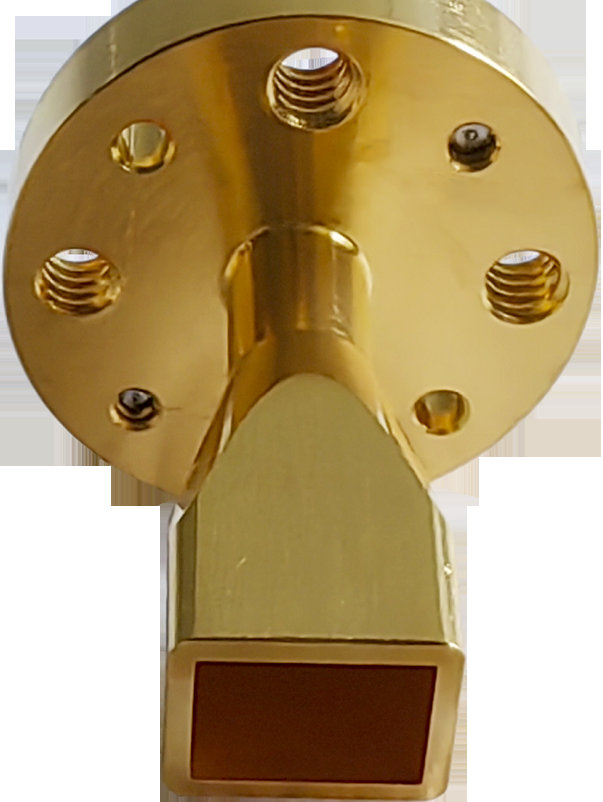

We manufacture a comprehensive range of waveguide components and assemblies for sub-THz and THz bands, including: Waveguide Flanges: Square, round, flat, and choke flanges with precise alignment features. Precision Shims: Gap and sealing shims from 0.01mm thickness with tight flatness tolerances. Locating Dowel Pins: Ground to exacting diameter tolerances for repeatable connection accuracy.
Clamps and Captive Screws: Designed for consistent clamping force without distortion. Custom Waveguide Assemblies: Fully assembled units ready for system integration. All components are available in materials optimized for high-frequency performance, including aluminum, copper, brass, Invar, and Kovar, with specialized surface treatments such as silver and gold plating to minimize skin effect losses.
