YDTech® Precision Waveguide Components(Flanges, Locating Pins, Shims) for 5G/6G, mm-Wave, Sub-THz & THz Applications
From 5G's millimeter-wave bands to 6G's sub-terahertz and terahertz frontiers, the demand for precision waveguide components has never been greater—or more technically demanding. As a specialized manufacturer of waveguide components and connection accessories, we position ourselves at the heart of this technological revolution. Our expertise spans the full spectrum of high-frequency communication, delivering precision-machined parts that ensure signal integrity, mechanical reliability, and uncompromising performance across the most challenging frequency ranges.
High-frequency performance begins with mechanical precision. At frequencies above 30 GHz, signal behavior is extraordinarily sensitive to dimensional accuracy—a deviation of mere microns can cause unacceptable insertion loss, phase distortion, or signal reflection. Our manufacturing facility, equipped with ultra-precision 5-axis machining centers and specialized EDM equipment, achieves tolerances as tight as 1 micron (0.001mm). This level of accuracy, combined with mirror-like surface finishes (Ra < 0.4μm), ensures that every waveguide component we produce meets the rigorous electrical and mechanical specifications required for mm-wave, sub-THz, and THz systems.
Our product line encompasses all critical connection accessories required for waveguide assemblies. Each component is precision-engineered to maintain signal integrity while ensuring robust mechanical connection.

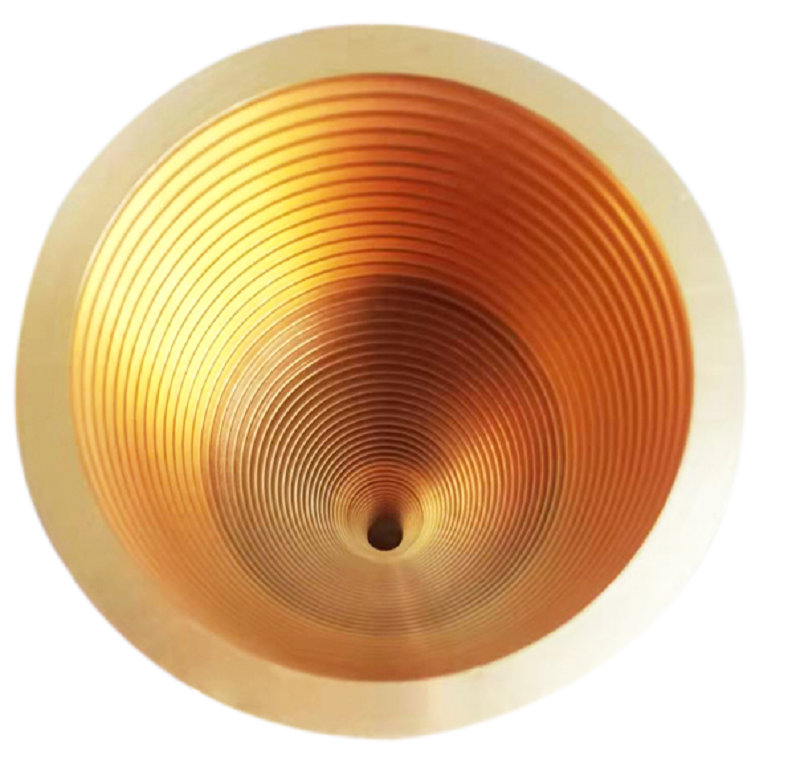

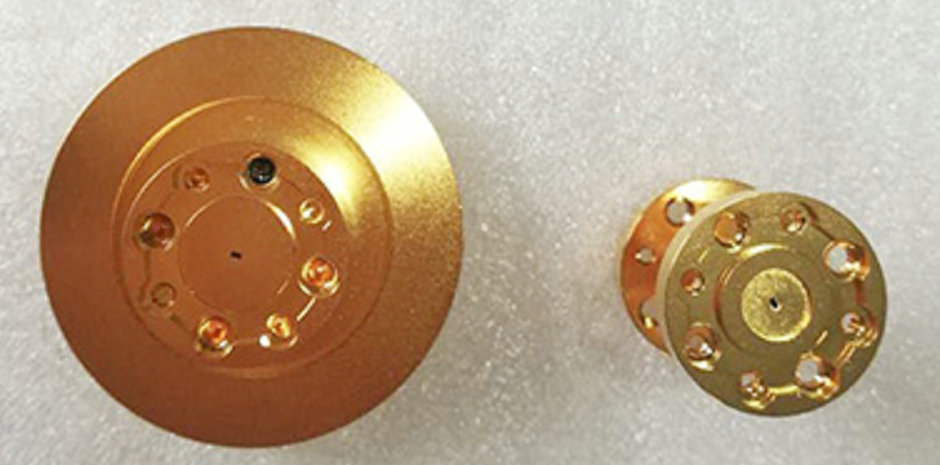

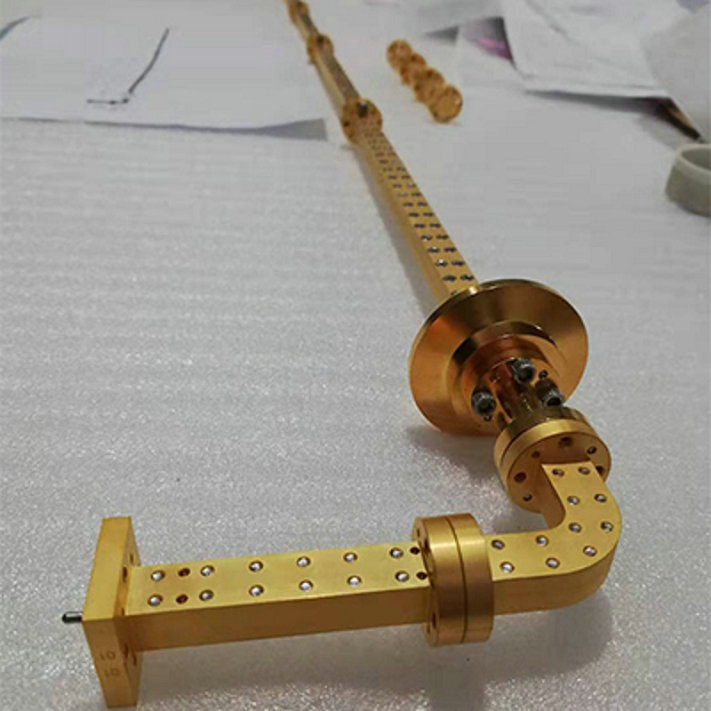

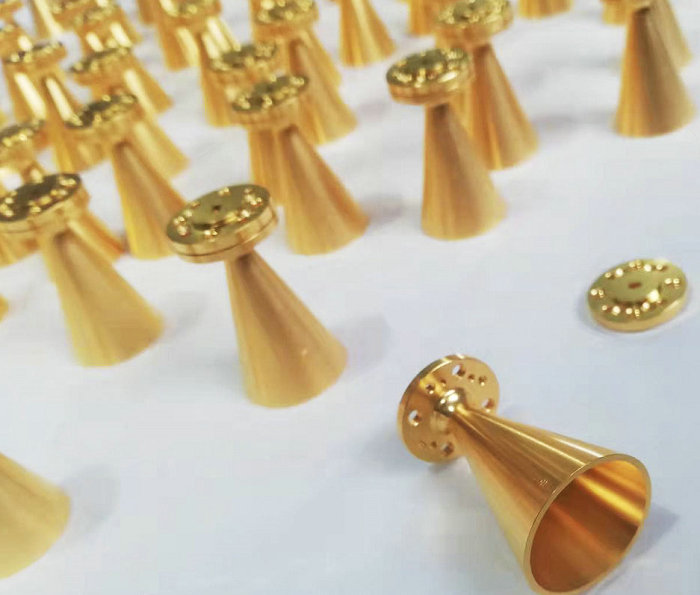

Flanges are the fundamental interface between waveguide sections. We manufacture a comprehensive range of flange types to accommodate diverse system requirements. Our square and round flanges provide standard mounting interfaces compatible with industry-standard waveguide sizes. Flat flanges offer simplified sealing surfaces for lower-frequency applications. Most critically, we specialize in choke flanges—a precision-engineered design that incorporates a quarter-wave choke groove to minimize RF leakage and reduce return loss without requiring a gasket. Each flange is machined to exacting dimensional standards, with bolt-hole patterns and alignment features precisely positioned to ensure proper mating and electrical continuity.
Sub-THz & THz Waveguide Dowel Pins – Precision Specifications
| Parameter | Standard Tolerance | Precision | Inspection Method | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter Range | 0.5 – 10 mm | 0.3 – 16 mm | Laser Micrometer | ||||||
| Diameter Tolerance (m6) | +0.009 / +0.004 mm | +0.006 / +0.002 mm | Laser Micrometer | ||||||
| Diameter Tolerance (h7) | 0 / -0.010 mm | 0 / -0.006 mm | Air Gauge | ||||||
| Length Tolerance | ± 0.10 mm | ± 0.02 mm | Optical Length Measurer | ||||||
| Cylindricity | ≤ 0.005 mm | ≤ 0.002 mm | Roundness Tester | ||||||
| Straightness | ≤ 0.01 mm | ≤ 0.004 mm | CMM | ||||||
| Surface Roughness (Ra) | ≤ 0.4 μm | ≤ 0.1 μm | Profilometer | ||||||
| Chamfer Angle Tolerance | ± 1° | ± 0.5° | Vision Measuring Machin | ||||||
| End Face Perpendicularity | ≤ 0.01 mm | ≤ 0.005 mm | CMM | ||||||

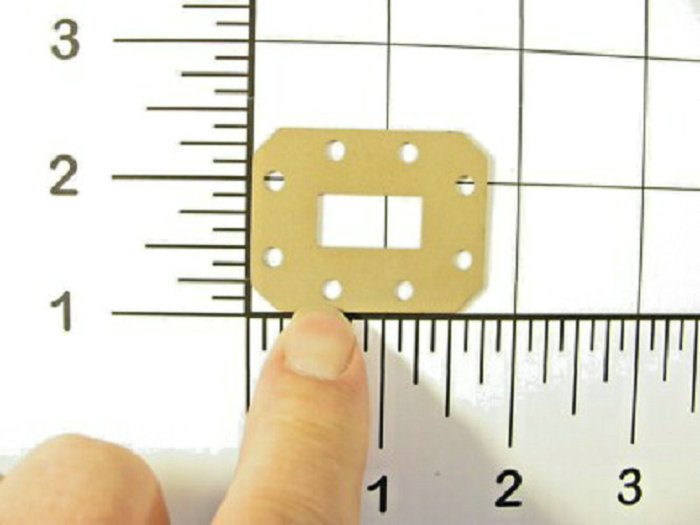

Waveguide assemblies often require precise gap management to compensate for thermal expansion, manufacturing tolerances, or assembly variations. Our precision shims are manufactured from materials compatible with waveguide bodies, available in thicknesses from 0.01mm to 1.0mm with tight flatness tolerances. Sealing shims incorporate gasket features to provide environmental sealing while maintaining RF performance—essential for outdoor and aerospace applications where moisture ingress must be prevented.

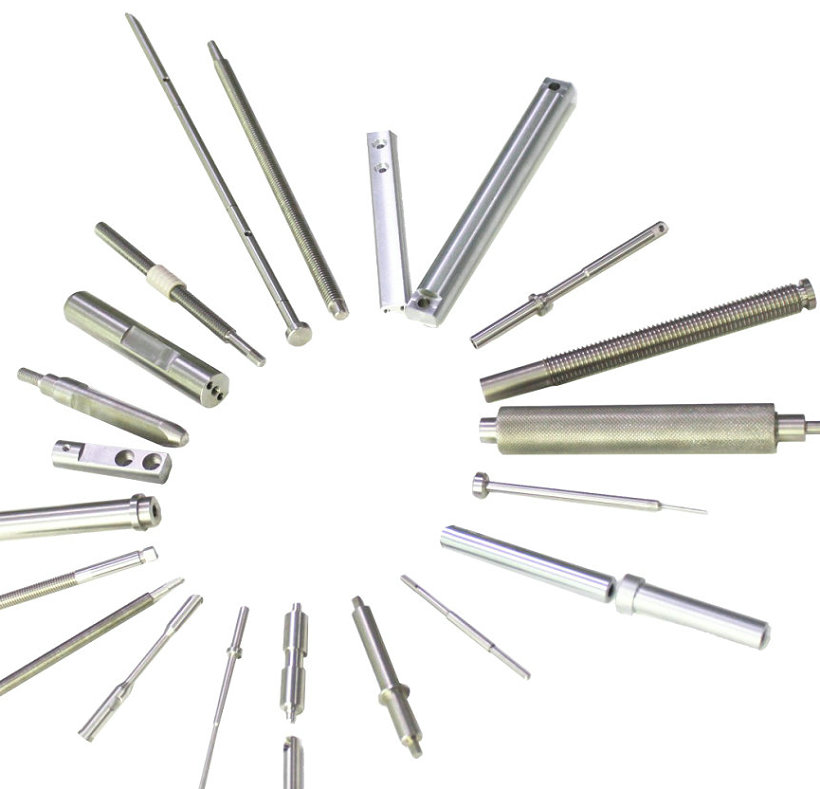

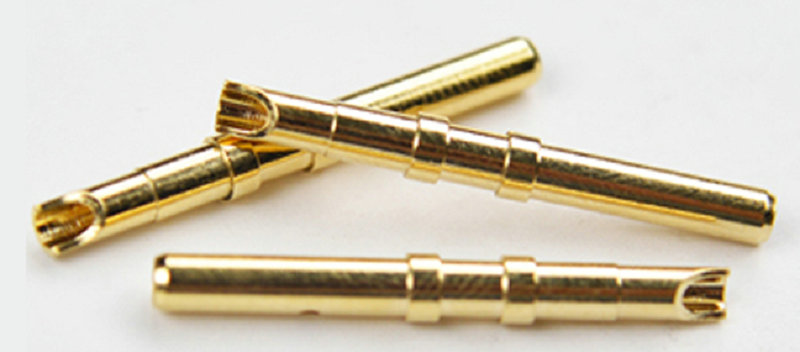

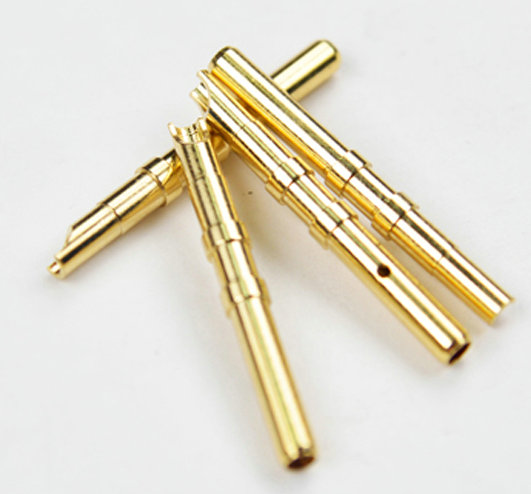

As we discussed, dowel pins are essential for repeatable, accurate waveguide connection. Our precision locating pins are ground to exacting diameter tolerances, ensuring consistent alignment across countless connect-disconnect cycles. In sub-THz and THz systems where wavelengths are measured in fractions of a millimeter, these pins are indispensable for achieving the positional accuracy that preserves signal integrity. We manufacture dowel pins to both standard (DIN 7, DIN 6325) and custom specifications, with diameters ranging from 0.5mm to 10mm and hardness options from HRC 55 to HRC 62.
Robust mechanical fastening completes the connection. Our clamps and screws are designed specifically for waveguide applications, providing consistent clamping force without distorting the waveguide structure. We offer captive screws, torque-limiting designs, and specialized clamp configurations for high-vibration environments. All fasteners are available in standard materials or with specialized coatings to prevent galling and ensure long-term reliability.
